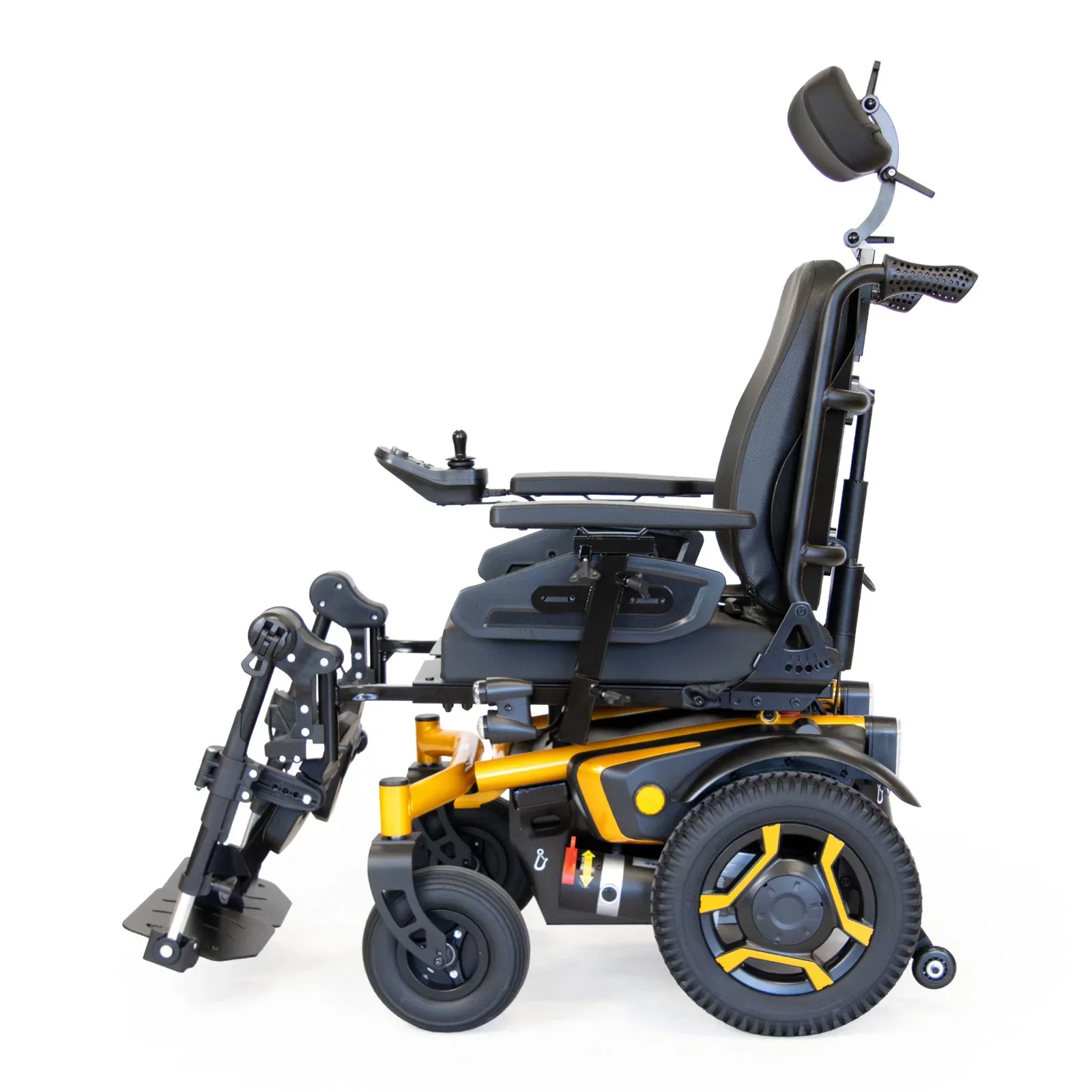

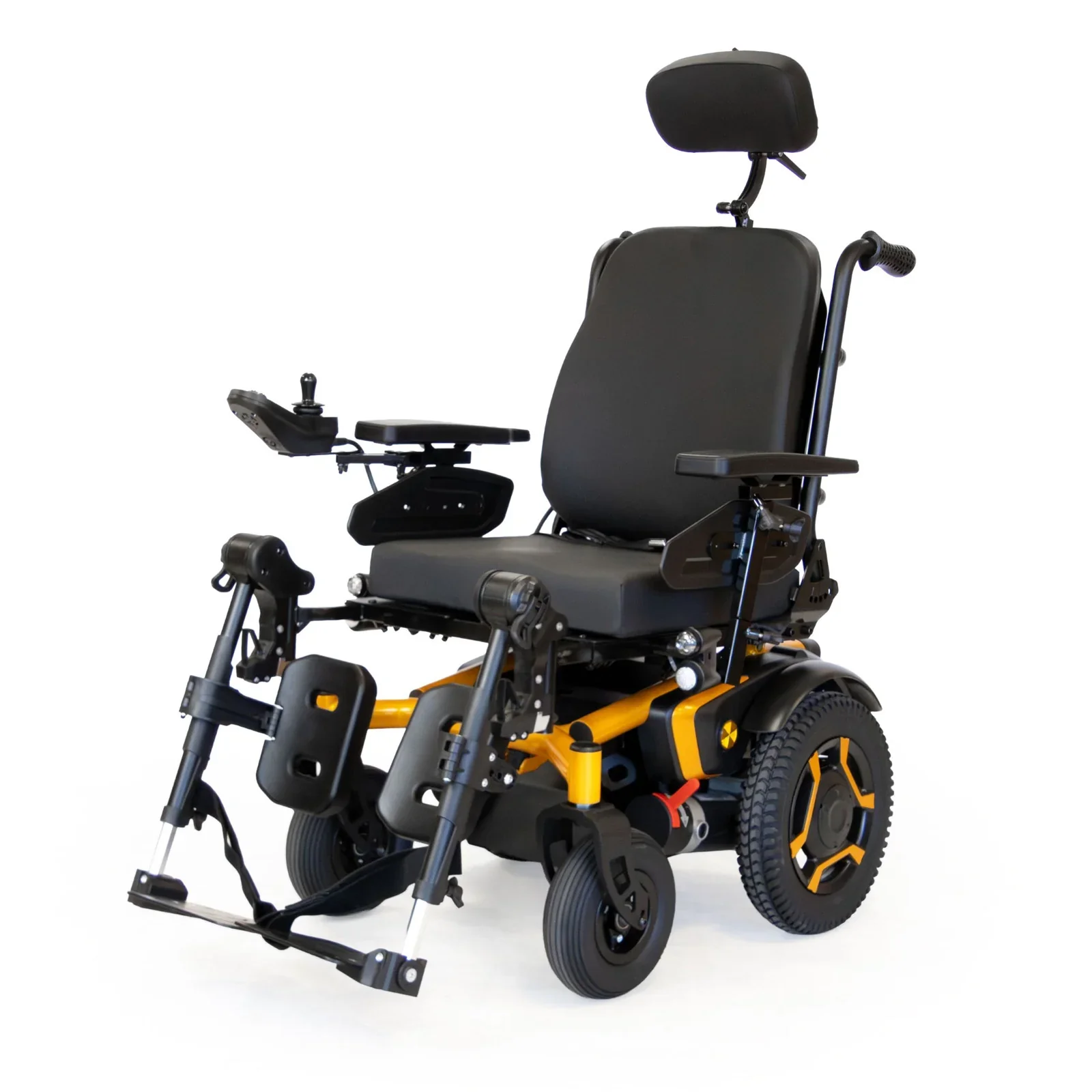

IKON Star Tilt Powerchair

Supportive, Stable and Ready for Everyday Mobility

The IKON Star Tilt Powerchair is a rear-wheel-drive powered wheelchair developed for users who require dependable mobility together with enhanced seating and positioning support.

Its sturdy construction, powered seating functions and responsive controls provide a comfortable and controlled driving experience. Suitable for use around the home and on accessible outdoor surfaces, the chair combines practical manoeuvrability with stable everyday performance.

Confident and Controlled Driving

Two 340W motors power the IKON Star Tilt, while electromagnetic brakes provide controlled stopping. Its rear-wheel-drive configuration supports stable handling outdoors and remains practical in tighter indoor areas, with a turning radius of approximately 900 mm.

The powerchair has a maximum speed of 10 km/h and a specified safe climbing angle of up to 10 degrees. Large drive wheels, rear suspension, anti-tip wheels and 50 mm obstacle clearance help the chair manage common pavements, ramps and everyday terrain.

Powered Seating and Positioning

The IKON Star Tilt includes several adjustment and positioning features to support comfort throughout the day.

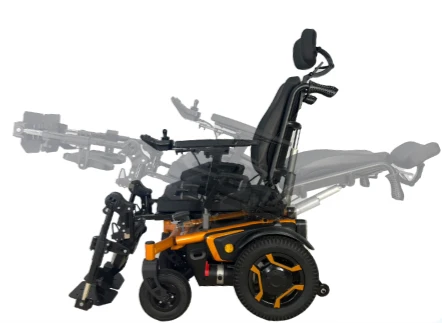

Electric tilt-in-space allows the seat angle to be adjusted to assist with positioning and pressure management. The chair also includes reclining functionality, elevating swing-away leg rests, adjustable foot supports and a supportive headrest.

The seat and backrest can be adjusted in width, while the seat depth, armrests and footrests can be configured to suit the individual user. Its pan-style seat base also allows compatibility with a variety of seating systems.

Practical Everyday Range

The chair is equipped with two 24V 52Ah batteries and has a stated maximum travel range of up to 30 km per charge. Actual range may vary according to user weight, terrain, battery condition, tyre pressure, temperature and driving conditions.

With a maximum user capacity of 136 kg, the IKON Star Tilt offers a strong and practical mobility solution for users requiring powered seating support for everyday indoor and outdoor use.

Features

• Electric tilt-in-space seating
• Reclining backrest
• Elevating swing-away leg rests
• Fold-up footplates
• Adjustable seat width and depth
• Adjustable backrest width
• Adjustable armrests, footrests and headrest
• Ergonomically designed seating for everyday comfort
• Pan-style seat base suitable for different seating systems
• Simple switching between driving and seating modes
• Dual 340W motors
• Electromagnetic braking
• Rear-wheel-drive configuration
• Rear suspension

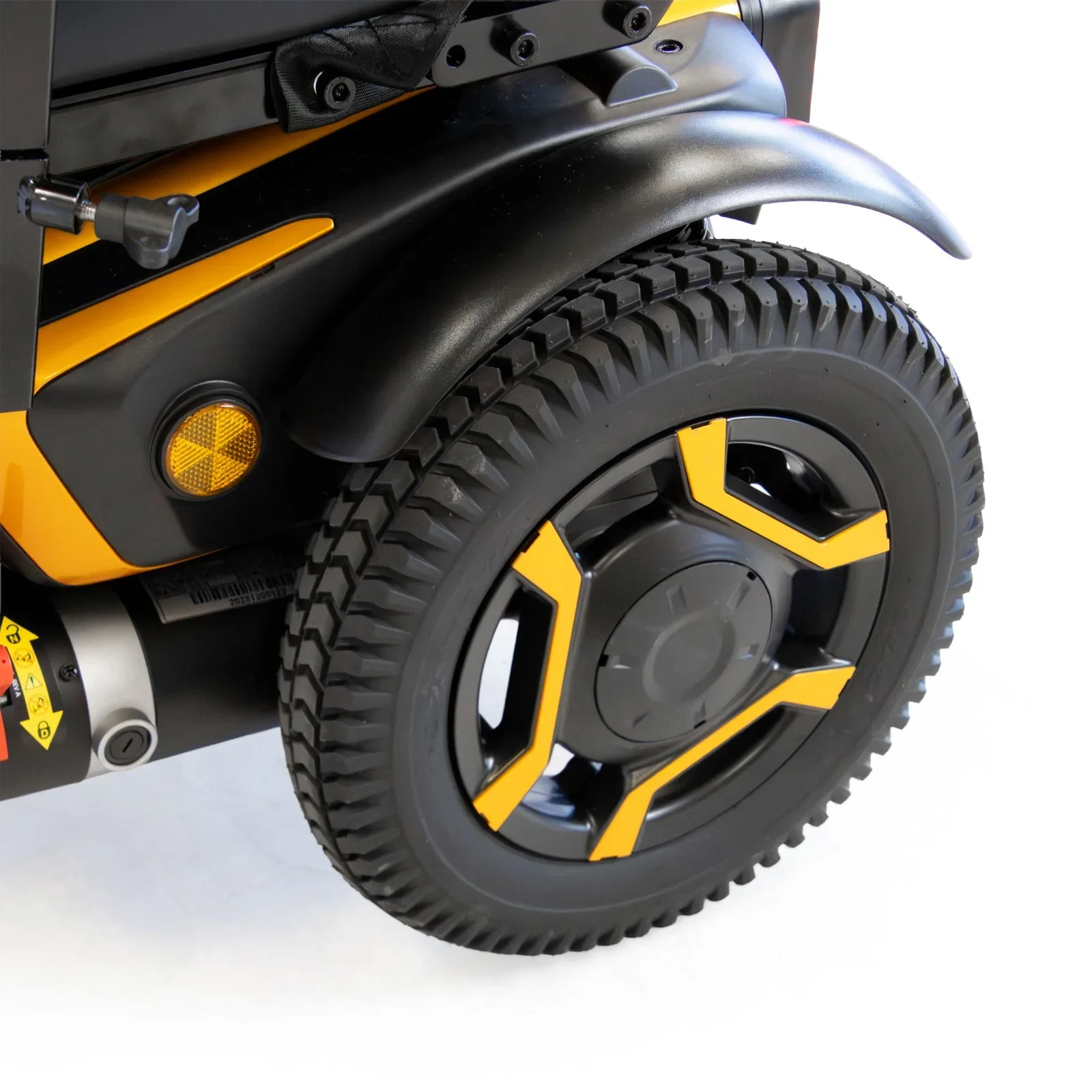

• 14-inch drive wheels
• Large front castor wheels

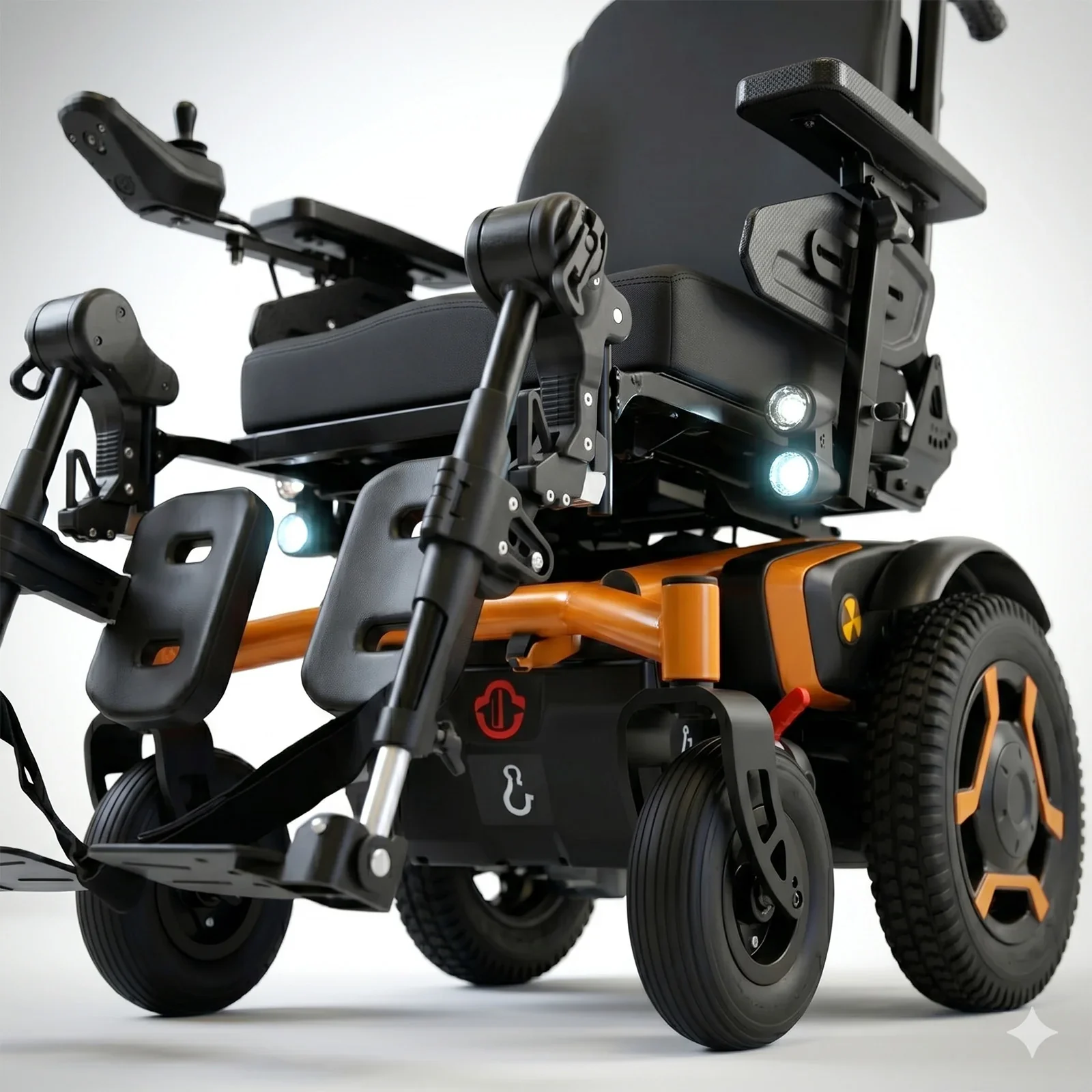

• Front and rear lights
• Anti-tip wheels
• Drive and manual freewheel modes
• Certified safety belt
• High ground clearance

Specifications

• Overall length: 1,080 mm
• Overall width: 580 mm
• Overall height: 1,215 mm
• Overall length with leg rests: 1,155–1,820 mm
• Folded length: 850 mm
• Folded width: 600 mm
• Folded height: 970 mm
• Backrest angle range: 90–144°
• Backrest height: 520 mm
• Backrest width: 430–480 mm
• Footrest-to-seat adjustment: 450–575 mm
• Leg-to-seat angle: 110°
• Floor-to-seat-pan height: 453 mm
• Floor-to-standard-seat-cushion height: 510 mm
• Armrest-to-seat adjustment: 170–290 mm
• Seat depth: 430–480 mm
• Seat width: 430–480 mm
• Seat tilt range: 0–22.5°
• Motors: 2 × 340W
• Batteries: 2 × 24V 52Ah
• Battery charger: 6A
• Rear-wheel size: 14 × 3 inches
• Front-wheel size: 9 × 3 inches
• Maximum user weight: 136 kg
• Product weight: 106.5 kg
• Combined battery weight: 26 kg
• Maximum speed: 10 km/h
• Minimum braking distance at maximum speed: 1,700 mm
• Obstacle clearance: 50 mm
• Specified safe climbing angle: 10°
• Turning radius: 900 mm
• Maximum stated range: Up to 30 km

Specifications, performance and travel range may vary depending on the chair’s configuration and operating conditions. A professional assessment is recommended to confirm suitability for the individual user.
